A lost foam casting mould is the aluminum tooling that shapes pre-expanded EPS, EPMMA, or STMMA beads into the foam pattern for a specific casting — it's what goes inside your molding machine, not the machine itself. RUIOU designs and manufactures this tooling to your casting drawing, matched to your existing molding equipment and target production volume.

If you're looking for the molding machine that runs this tooling, see White Area Equipment. If you're looking for finished metal castings rather than tooling, see Ruiou Lost Foam Foundry.

WHAT A LOST FOAM CASTING MOULD ACTUALLY DOES

The mould is made of cast aluminum alloy, chosen for fast, even heat transfer during steam molding and long service life under repeated heating and cooling cycles. It consists of a mould base for structural support, a cavity that determines the exact shape of the foam pattern, and a vent system that lets steam and air escape as the beads expand and fuse. Precision here matters directly to your finished casting: cavity accuracy, wall thickness, and venting design carry through to the dimensional accuracy and surface finish of the metal part after pouring.

CUSTOM MOULD PRODUCTS

Each mould below is built to the casting drawing for that specific part — these are representative examples, not a fixed catalog.

• Steel Claw Mould — tooling for excavator/loader grab and claw-type castings

• Wire-Rope Roller Mould — tooling for pulley and sheave castings used with wire rope

• Motor Casing Mould — tooling for electric motor housing castings

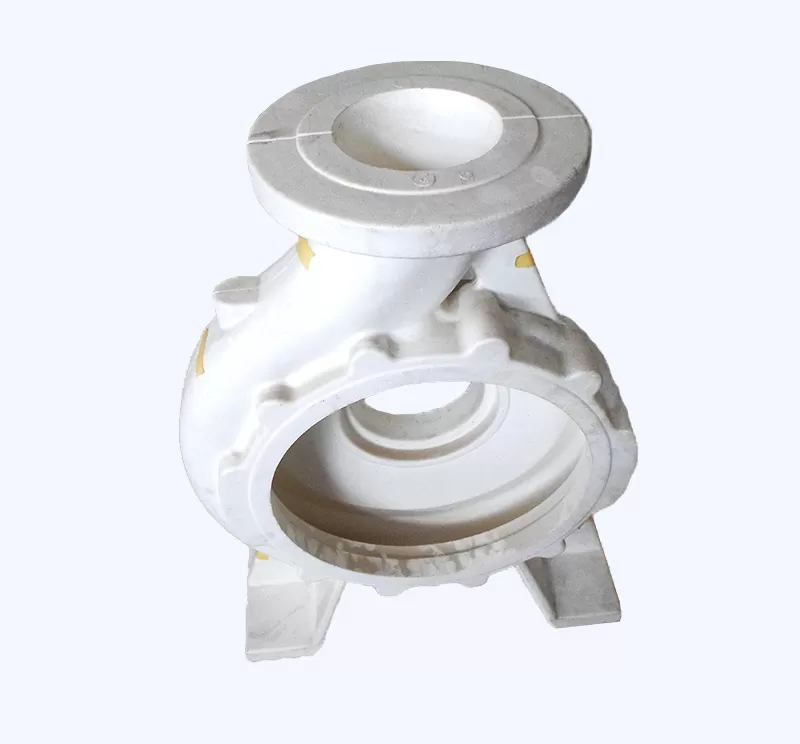

• Pump Body Mould — tooling for pump body castings

• Valve Fittings Mould — tooling for valve component castings

  Don't see your part? RUIOU builds mould tooling to any casting drawing — contact us with your part geometry and target output.

HOW TO CHOOSE A LOST FOAM CASTING MOULD SUPPLIER

Buyers sourcing mould tooling are usually weighing:

• Casting geometry and wall thickness — determines cavity design, venting layout, and achievable dimensional tolerance.

• Cavity count — how many patterns per cycle you need, based on your molding machine's chamber size and your target output.

• Compatibility with your existing molding equipment — mould dimensions and mounting must match the molding machine you already run, or the one you're buying alongside it.

• Bead material — EPS, EPMMA, or STMMA — since cavity venting and shrinkage allowance differ by material.

• Shrinkage rate — the dimensional difference between the mould cavity and the finished foam pattern, which needs to be built into the design up front, not corrected after the fact.

• Mould material and construction — aluminum alloy grade affects service life under repeated steam-heat cycling.

• Lead time — custom tooling is typically the long-lead item in a new production line, so this often needs to be ordered before the rest of the White Area equipment arrives.

WHERE THIS FITS IN YOUR LFC LINE

A lost foam casting mould only produces value once it's paired with the right equipment around it. It mounts into a Screw Molding Machine or Hydraulic Molding Machine, using EPS beads prepared by a pre-expander such as the Steam EPS Pre-Expander Machine, and the resulting foam pattern moves on to coating, drying, and casting in the Yellow and Black Areas.

FAQ

Q: What is a lost foam casting mould?

A: It's the aluminum tooling — mounted in a molding machine — that shapes pre-expanded EPS, EPMMA, or STMMA beads into the exact foam pattern shape for a specific casting. It's the tooling, not the machine that runs it.

Q: Can you build mould tooling for a part that isn't on your product list?
A: Yes. The products shown are examples of parts RUIOU has built tooling for — mould design is done to your casting drawing, not from a fixed catalog.

Q: Will a new mould fit my existing molding machine?
A: It can be built to match your existing machine's chamber dimensions and mounting — share your machine model or drawing and we'll confirm fit before quoting.

Q: How long does custom mould tooling take to build?
A: Lead time depends on part complexity and cavity count; because tooling is usually the long-lead item in a new line, it's worth ordering before finalizing your other White Area equipment timeline.

Q: Do you also sell finished metal castings, not just the mould tooling?
A: That's handled separately through Ruiou Lost Foam Foundry, which offers turnkey and contract casting production rather than tooling sales.

Whether you need tooling for a new casting or a replacement mould for an existing production line, RUIOU builds each lost foam casting mould to your part drawing and molding machine specifications.
Send us your casting drawing, target cavity count, and molding machine model for a customized quote.
