Lost Foam Casting Production Lines: A Comprehensive Overview

Apr. 30, 2024

Lost foam casting is a sophisticated manufacturing process that enables the creation of intricate metal parts with high precision and efficiency. Central to this method are three main process areas known as the White area, Yellow area, and Black area. These areas collectively form a complete lost foam casting production line, each playing a crucial role in the overall process. In this article, we will explore each of these areas in detail, highlighting their significance and contributions to the production line.

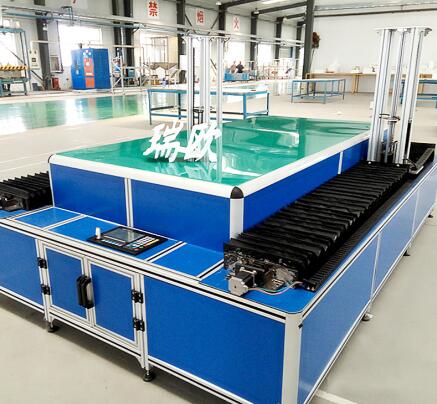

Four-Axis CNC Model Cutting Machine

The White Area: Material Preparation and Pattern Creation

The White area serves as the starting point of the lost foam casting production line, focusing on material preparation and pattern creation. Here, the selection of the right material for the pattern is paramount to the success of the casting process. Depending on the type of metal being cast, different materials are utilized. For instance, expandable polystyrene (EPS) containing pentane as a blowing agent is preferred for aluminum castings, while a copolymer of EPS and EPMMA is used for cast iron and steel parts.

The Yellow Area: Pattern Formation and Assembly

In the Yellow area, the focus shifts to pattern formation and assembly. Pre-expanded EPS beads are used to create patterns within metallic permanent molds. Through a combination of compressed air and heat, these beads are bonded together to form the desired pattern geometry. Additionally, complex pattern geometries are segmented into simpler sections, which are then assembled to create complete patterns. This meticulous process ensures the creation of intricate patterns necessary for the casting process.

The Black Area: Mold Preparation and Casting

The Black area is where the actual casting process takes place. Coated clusters, consisting of assembled patterns mounted on gating systems, are positioned in flasks and surrounded by quartz sand. The sand is compacted around the clusters, leaving only the sprue exposed. Molten metal is then poured into the sprue, decomposing the EPS clusters and filling the mold cavity with intricate details. After solidification, the castings are demolded, forming the final metal parts.

Conclusion: Achieving Precision and Efficiency in Lost Foam Casting

In conclusion, the integration of the White, Yellow, and Black areas forms a comprehensive lost foam casting production line, enabling the creation of complex metal parts with precision and efficiency. Each area plays a crucial role in different stages of the process, from material preparation and pattern formation to mold preparation and casting. By optimizing each step of the production line, manufacturers can achieve high-quality castings while minimizing waste and maximizing productivity.

For more information on lost foam casting or to inquire about suppliers for your manufacturing needs, please contact us.
