Airbag Vibration Table

Share:

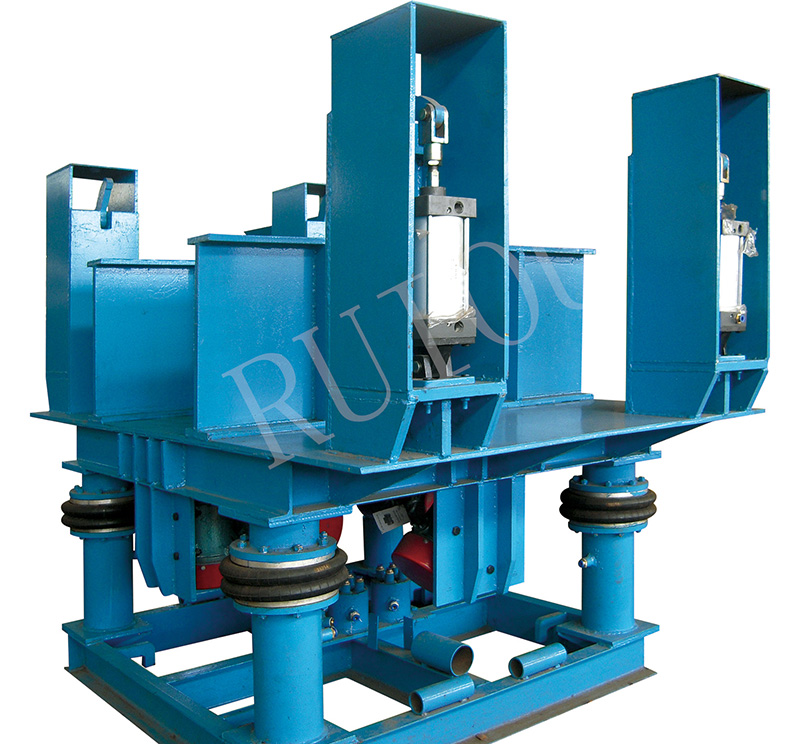

The main structure of vibration table is composed of 16mm thickness steel plate. On the vibration table,it installs 6 shocking engines.On the vertical pillar, it installs top promotion airbag, used for vibration table promotion and demotion. On the upper part,it installs air cylinder clamping structure ,used for clamping air cylinder. For electric control, we have already joint the vibration table engine to the wiring line end based on electric line picture. In the control cabinet, we also join it to the wiring line end based on electric line picture.


Product Description

1.The equipment control flow

  The airbag vibration table working state is controlled by control cabinet. When sandbox operates and stays on vibration table surface, it blows air into airbag by air pipe. The top promotion supporting frame pushes sandbox upward and breaks away form rail. In this process, air cylinder works to clamp sandbox. Then the vibration engine begins to work to make vibration table produce three-dimension compaction effect. The molding sand in the sandbox reaches expected effect. After vibration, the airbag discharges air by control table. The sandbox returns back to the guide rail.

2.The main functions and advantages

①The air bag’s promotion and demotionair cylinder clamping sandboxes; the shocking force can be transported to the sandbox to the great extent.

②It has the frequency conversion function and gets the role of adjusting the shocking force.It is used for vibration of different structures and wall thickness castings.

③The three-dimension vibration has a good vibration effect. The production efficiency is high. The vibration frequency is adjusted by frequency transformer.The operation is easy and simple to maintain.
