Lost Foam Casting Equipment for Complete Production Lines

RUIOU provides integrated lost foam casting equipment for complete evaporative pattern casting (EPC) production lines. Our solutions combine foam pattern manufacturing, refractory coating and drying, sand molding, vacuum casting, and sand processing into a coordinated production system. With more than 20 years of experience in lost foam casting, RUIOU supports foundries planning new production facilities and expanding their casting capacity.

Unlike purchasing machines individually, a complete lost foam casting production line must be configured around casting dimensions, casting alloy, production volume, molding flask capacity, process cycle times, and available utilities. RUIOU supplies integrated production line projects rather than standalone machinery. Equipment models, operating capacity, automation levels, and supporting systems are selected together to meet the requirements of the complete casting process.

Our equipment portfolio covers the White Area, Yellow Area, Black Area, and sand processing systems. These systems are integrated according to the required production capacity, workshop layout, and casting process.

Types of Lost Foam Casting Production Lines

Production Line Type	Configuration Characteristics	Suitable Production Requirements	Customization Options
Simple Lost Foam Casting Line	Basic integrated equipment arrangement with greater manual handling between operations.	Projects with limited production volume, flexible operating schedules, and lower automation requirements.	Flask dimensions, molding stations, handling equipment, and workshop arrangement.
Semi-Automatic Lost Foam Casting Line	Mechanized conveying, sand filling, vibration, and selected handling operations, with operator involvement at designated stations.	Foundries seeking a balance between equipment investment, production efficiency, and operational flexibility.	Conveyors, transfer mechanisms, workstation count, vacuum distribution, and control configuration.
Automatic Lost Foam Casting Line	Coordinated process control, automated material handling, and integrated molding and sand processing equipment.	Continuous production projects requiring more consistent handling and reduced manual intervention.	PLC-based controls, automated transfer, production monitoring, alarms, and selected robotic operations.
Custom Complete EPC Casting Line	Project-specific integration of pattern preparation, coating, molding, vacuum systems, sand circulation, and supporting equipment.	Projects with special casting dimensions, production targets, plant layouts, or engineering requirements.	Production capacity, system architecture, equipment dimensions, control integration, and factory layout.

Complete Lost Foam Casting Equipment Configuration

A complete production line requires the White Area, Yellow Area, Black Area, and sand circulation system to operate at compatible capacities. RUIOU selects equipment from its established product range and integrates the required units into one coordinated casting production process.

Production System	Equipment Included in Available Configurations	Main Function	Selection Factors
White Area — Foam Pattern Preparation	Steam pre-expander, electric and steam pre-expander, EPS aging silo, hydraulic or screw molding machine, foam cutting equipment, and material feeding devices.	Prepare and manufacture foam patterns according to the casting design.	Pattern material, dimensions, required pattern output, molding cycle, and mold requirements.
Yellow Area — Coating & Drying	Coating blender, dipping manipulator, drying room, steam or electric heater, dehumidifier, and handling equipment.	Apply refractory coating and dry foam patterns before molding.	Coating process, pattern size, drying load, humidity control, and available heat sources.
Black Area — Sand Molding & Vacuum Casting	Casting sand boxes, vibration tables, negative pressure systems, vacuum distributors, turnover machines, and associated handling equipment.	Support sand filling, compaction, vacuum-assisted molding, casting, and flask turnover.	Casting dimensions, flask capacity, vibration requirements, vacuum demand, and molding cycle.

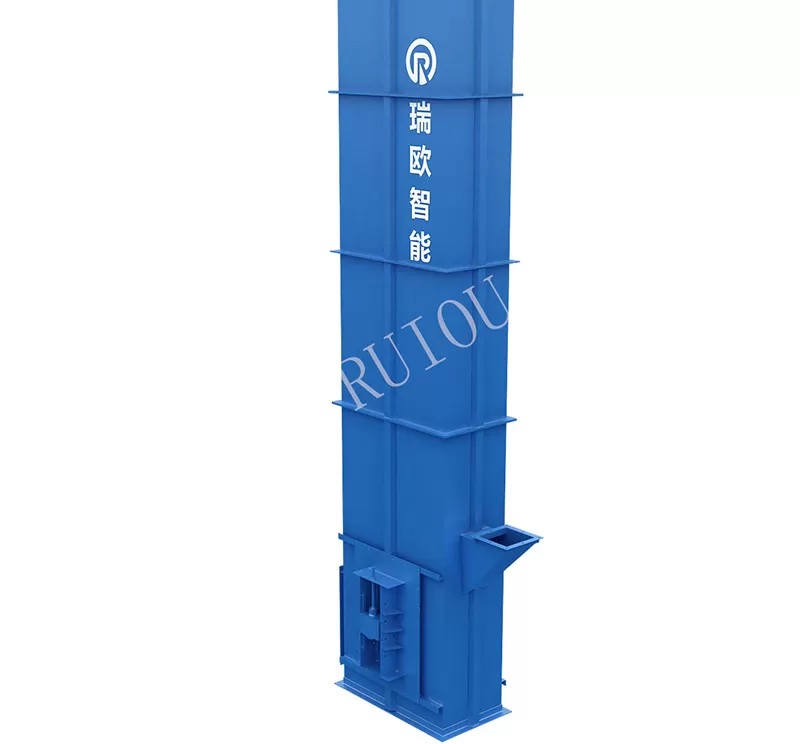

Sand Processing & Recycling	Sand conveyors, elevators, storage hoppers, sand coolers, screening equipment, magnetic separators, sand shower feeders, and dust collection systems.	Recover, cool, transport, and prepare molding sand for reuse.	Sand circulation rate, inlet sand temperature, target operating temperature, conveying distance, and available plant space.
Line Control & Material Handling	Electrical controls, equipment interlocks, transfer equipment, conveyors, and optional automated handling systems.	Coordinate material flow and operating sequences between production stages.	Automation level, production layout, safety requirements, operating sequence, and control interfaces.

For individual system functions and equipment structures, explore the foam pattern preparation system, coating and drying system, sand molding and vacuum casting system, and sand processing equipment.

Lost Foam Casting Equipment Technical Specifications

RUIOU supports conventional lost foam casting line configurations and larger custom-engineered projects. The following ranges summarize available equipment configuration capabilities. Actual molding efficiency, sand handling capacity, and equipment dimensions must be matched within the same engineering design.

Technical Parameter	Optional / Custom Configuration
Production Process	Lost Foam Casting / Evaporative Pattern Casting (EPC)
Production Line Type	Simple, semi-automatic, and automatic configurations.
Molding Flask Length	1,000–2,000 mm,Large-format configurations up to approximately 3,100 mm in length.
Molding Flask Width	630–1,600 mm, Large-format configurations approximately 1,900–2,000 mm wide.
Representative Flask Configurations	1000 × 800, 1200 × 1200, 1200 × 1400, and 1750 × 1600 mm nominal plan dimensions; 2000 × 1600 and 3100 × 1900 mm nominal plan dimensions.
Molding Efficiency	5–10 molds/hour,Approximately 10–20 molds/hour for specifically engineered higher-throughput configurations.
Sand Processing Capacity	5–10 molds/hour,Higher-capacity sand processing systems, including approximately 35–50 tons/hour configurations.
Annual Casting Output	Custom annual output targets determined through line capacity engineering.
Pattern Material	EPS-based lost foam pattern preparation.
Applicable Casting Materials	Cast iron,cast steel,Gray iron, ductile iron, wear-resistant castings, and other alloys subject to project-specific process design.
Coating & Drying	Coating mixing, dipping, and controlled drying.
Vacuum System	Vacuum capacity, control range, and distribution network designed according to flask size and operating conditions.
Electrical Configuration	Voltage, frequency, motors, and electrical controls adapted to project requirements.
Control System	PLC-based coordination, HMI, operating alarms, and selected automation functions.
Workshop Layout	Customized equipment positioning, material flow, floor space utilization, and utility interfaces.

Choosing Lost Foam Casting Equipment by Casting Application

Different casting applications place different demands on flask dimensions, pattern design, coating systems, sand handling, and casting conditions. The equipment configuration should be determined from the actual casting drawings and production requirements, rather than from the industry name alone.

Casting Application	Production Line Configuration Focus
Gray Iron Castings	Pattern molding, coating preparation, flask selection, vacuum system, and sand circulation.
Ductile Iron Castings	Pattern quality, molding consistency, pouring process interfaces, and cooling arrangements.
Cast Steel & Wear-Resistant Components	Coating and drying process, sand management, vacuum arrangement, and flask handling.
Pump & Valve Bodies	Pattern preparation, cluster arrangement, coating uniformity, and suitable flask dimensions.
Automotive & Mechanical Components	Repeatable pattern preparation, automated handling options, molding cycle, and process control.
Large Counterweights & Machinery Components	Custom sand boxes, vibration capacity, turnover equipment, and higher-capacity sand circulation.

Standard, Optional and Custom Production Line Configurations

RUIOU provides complete lost foam casting production line solutions using established equipment types and project-specific engineering. Customization covers not only individual machine dimensions but also the relationship between different production systems.

Configuration Item	Established Equipment Scope	Optional Configuration	Custom Engineering Scope
Foam Pattern Production	Pre-expansion, aging, molding, cutting, and feeding systems.	Different pre-expansion methods, molding structures, and cutting equipment.	Pattern output, machine sizes, number of stations, and production arrangement.
Coating & Drying	Mixing, dipping, drying, and humidity control equipment.	Electric or steam heating, different drying room configurations, and automated handling.	Drying capacity, layout, heating demand, and coating process requirements.
Molding Flasks	Conventional flask sizes within the available line configuration range.	Different flask length, width, and structural arrangements.	Large and special-size flasks matched to casting geometry and handling requirements.
Vibration & Compaction	Vibration tables within complete molding systems.	Different vibration table structures and control arrangements.	Working dimensions, load capacity, vibration parameters, and flask interfaces.
Vacuum Distribution	Negative pressure generation and distribution systems.	Additional distribution branches and control functions.	Vacuum capacity, piping layout, operating stations, and process controls.
Sand Processing	Sand conveying, cooling, screening, separation, storage, and dust handling.	Additional conveying and processing equipment.	System throughput, operating temperature, conveying distance, and workshop arrangement.
Automation	Integrated controls according to line configuration.	PLC control, transfer equipment, HMI, and automatic handling.	Process sequencing, interlocks, operating interfaces, and project-specific automation.
Electrical & Utilities	Electrical and utility requirements determined by equipment selection.	Electrical components and control functions selected for project needs.	Country-specific voltage, frequency, utility interfaces, and plant conditions.
Workshop Layout	Integrated process layout.	Different equipment positions and material handling routes.	New plant layout or configuration according to an existing workshop drawing.

Custom equipment capabilities include modifications to flask dimensions, line throughput, handling systems, sand processing capacity, drying systems, electrical arrangements, and control functions.

MOQ

Procurement Item	RUIOU Production Line Policy / Quotation Basis
Order Scope	Complete integrated lost foam casting production lines. Standalone machine sales are not offered.
MOQ	1 Lines
Packaging	Equipment-specific transportation and export packaging requirements to be agreed upon for the project.
Installation & Commissioning	Service scope, location, responsibilities, and schedule to be specified in the project agreement.
Training	Technical training scope and delivery arrangements to be agreed upon.
Warranty & Spare Parts	Applicable terms and spare parts requirements to be specified in the quotation or supply contract.
Price	Based on equipment configuration, target capacity, automation, custom engineering, and agreed supply scope.

Frequently Asked Questions About Lost Foam Casting Equipment

Does RUIOU sell individual lost foam casting machines?

No. RUIOU supplies complete integrated lost foam casting production lines. White Area, Yellow Area, Black Area, and sand processing equipment are configured together as parts of a production line project. Individual machine-only orders are not offered.

Can RUIOU provide both semi-automatic and fully automatic production lines?

Yes. RUIOU can configure semi-automatic and automatic lost foam casting production lines. The exact automation level depends on the required handling operations, production capacity, process control, and project budget. Final functions are defined in the technical proposal.

What molding flask sizes are available?

Available conventional configurations include nominal flask plan dimensions such as 1000 × 800, 1200 × 1200, 1200 × 1400, and 1750 × 1600 mm. Larger custom configurations can include approximately 2000 × 1600 and 3100 × 1900 mm.

Can RUIOU design a line for cast iron and cast steel production?

Yes. RUIOU can configure lost foam casting production lines for gray iron, ductile iron, cast steel, and other project-specific casting requirements. Coating, pattern preparation, flask selection, vacuum arrangement, and supporting systems are selected according to the casting material and technical conditions.

Can the production line be arranged inside an existing factory building?

Yes, a production line layout can be designed around existing workshop conditions where the required equipment, access, utilities, and safety provisions can be accommodated. Provide a factory layout drawing, building clear height, column positions, and utility information for engineering evaluation.

Plan Your Complete Lost Foam Casting Production Line with RUIOU

Whether you are establishing a new foundry or increasing the capacity of an existing casting operation, selecting the correct equipment configuration is essential to reliable production. RUIOU provides integrated lost foam casting equipment solutions covering foam pattern preparation, coating and drying, sand molding, vacuum casting, and sand processing.

Share your casting drawings, material, target annual output, preferred automation level, and available workshop dimensions. Our team can review your requirements and discuss a customized production line configuration, equipment scope, and project quotation. RUIOU focuses on complete production line projects rather than individual machine sales.
